Apache6

USV with Norbit Multibeam Echo sounder
APACHE6_With iLidar.png

FEATURE

APACHE6_Back View.png

EASY TO DEPLOYMENT

Allow two operators to cope with most of remote deployment conditions.

APACHE6_Front View.png

HIGH PERFORMANCE TRIPLE-HULLED VESSEL DESIGN

Its dual detachable floating bodies keep the hull balanced even in the rapid current situation. Removing the floating bodies allows operation in shoals, channels and shallow rivers without run aground.

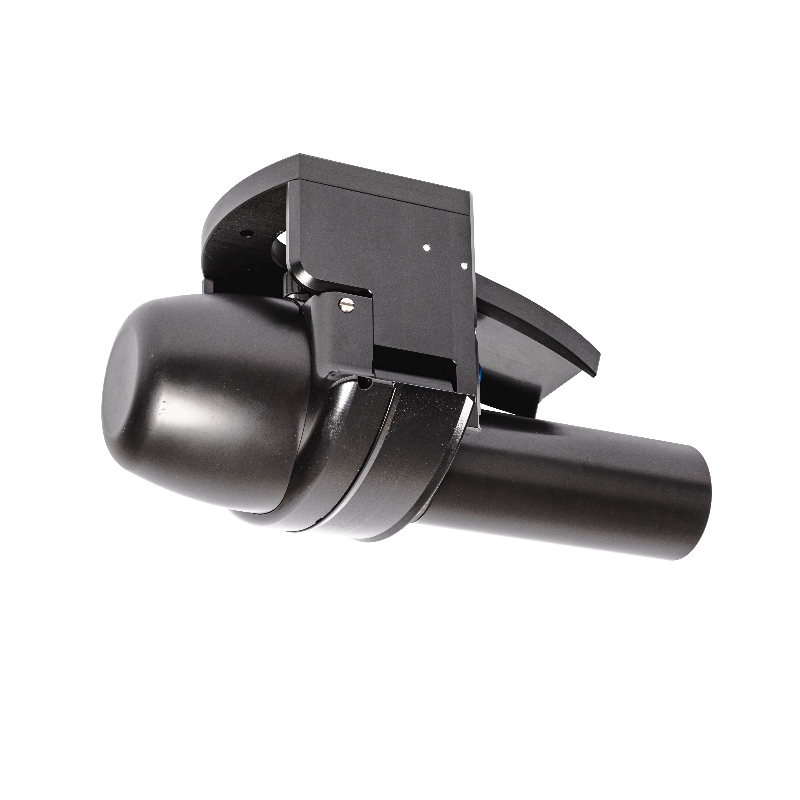

OPTIMIZED FOR NORBIT MULTIBEAM ECHOSOUNDERS

APACHE 6 design for the NORBIT iWBMSe, iWBMS and iWBMSh-STX series offering with high end performances to match the most demanding hydrographic survey requirements.

APACHE6_With iLidar.png

OPTIONAL TERRESTRIAL MAPPING LASER SENSOR

Collect up to 300 000 points per second at a 30 x 360 degree coverage. NORBIT iLiDAR mapping sensor provides high-accuracy combined marine and terrestrial 3D survey

SPECIFICATIONS

Physical                                             :               1.8 m x 0.55 m x 0.25 m(L × W × H)

Material                                              :               Macromolecule polyester carbon fiber

Weight (w/o instrument and battery)                    :               15 kg

Weight (Typical instrument)                   :               40 kg

Payload(typical)                                :               60 kg

Maximum motor speed                    :               7,000 rpm

Maximum speed                               :               5 m/s

Battery endurance                           :               2 x 2 hours @ 2 m/s (running on 2 battery sets)

​

NORBIT MBES Specifications
